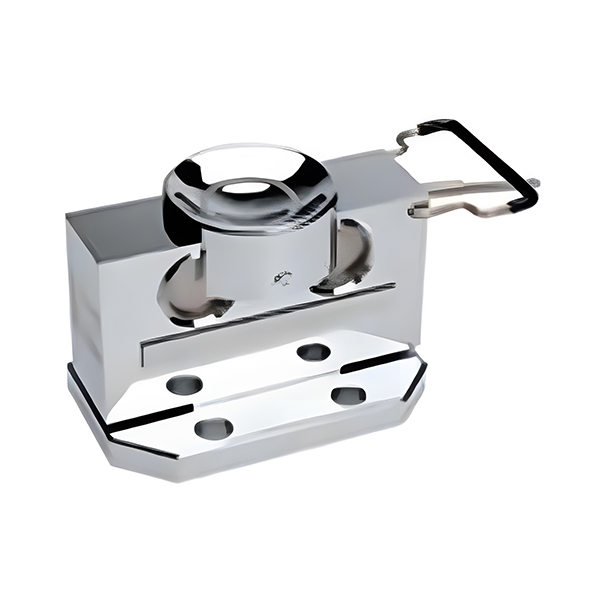

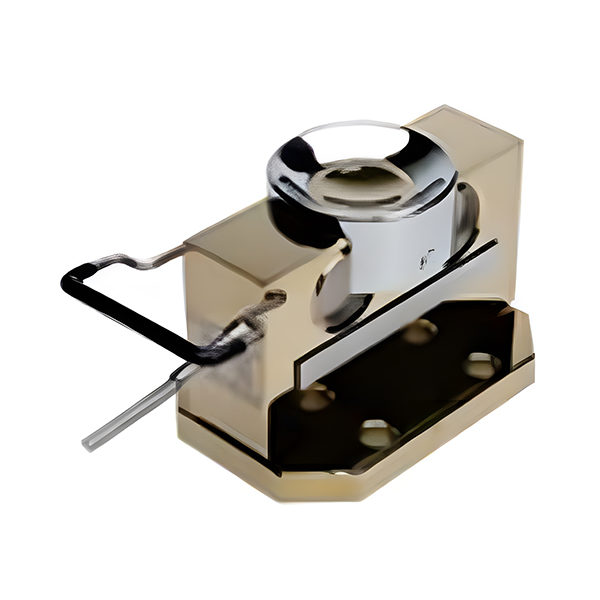

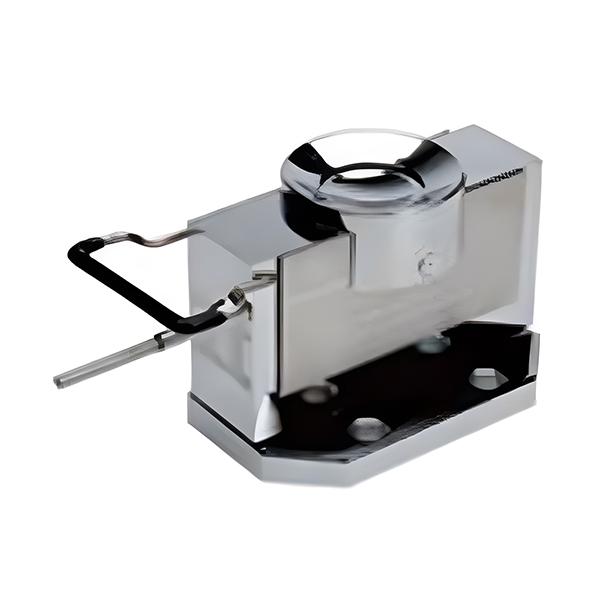

Iot Clamp Metal Weighing Sensor

The IoT clamp metal weighing sensor combined with IoT technology not only greatly improves the accuracy and intelligence level of electronic truck scales but also makes equipment debugging more user-friendly, safer to use, and more convenient to maintain. Made of high-quality alloy steel and equipped with two sealing forms of coating glue or diaphragm, it ensures that the sensor can work stably in harsh environments. Its structural design is simple and has automatic centering and automatic reset functions, strong lateral resistance, and can maintain high accuracy under complex conditions.

The sensor supports digital signal transmission, has a long transmission distance, and has outstanding anti-interference and anti-cheating capabilities. It has a built-in lightning protection module to protect the equipment's long-term stable operation. The eccentric load (four corners) calibration can be completed automatically at one time, greatly reducing the complexity of manual adjustment.

Main Parameters and Features
◆ Made of high-quality alloy steel material.
◆ Two kinds of sealing forms of coating glue and diaphragm are available; ◆Simple structure, automatic centering, automatic resetting, and strong resistance to lateral direction.
◆ Simple structure, automatic centering, automatic reset, strong lateral resistance.
◆ The digital signal transmission distance is far, anti-interference, anti-cheating ability is strong, built-in lightning protection module; ◆Digital signal transmission distance is far, anti-interference, anti-cheating ability is strong, built-in lightning protection module.
◆ Offset load (four corners) calibration is done automatically at one time.
◆ Failure self-diagnosis, an error code will be issued when there is a failure, according to the code can judge the cause of the failure so that the maintenance is more convenient.
◆ Rated load(t): 50t
◆ Allowable Operating Temperature Range(°C): -35~+65
◆ Maximum Excitation Voltage(V): 18(DC)
